ESPECIFICACIONES:

• General features:

digital media receiver with AM/FM tuner (does not play CDs)
built-in amplifier (18 watts RMS CEA-2006/55 peak x 4 channels)
built-in Bluetooth connectivity
USB port accommodates Apple devices, select Android phones, and thumb drives
MP3/WMA/WAV/FLAC compatible
works with Pandora (iPhone and Android)
5-band equalizer
detachable face with single-line display
high-contrast LCD display
remote control

• Expandability:

built-in iPod, iPhone, and iPad control
inputs: front USB port, front auxiliary input
outputs: 4-channel preamp outputs (2-volt rear and sub)

ESPECIFICACIONES:

• Características Destacadas

Pantalla táctil 7.0" VGA
Panel frontal autodeslizante
Bluetooth manos libres y Audio Streaming incorporados
Reproducción MP3/WMA/AAC/WAV/FLAC
Reproducción JPEG/MPEG1/MPEG2/MPEG4/H.264/MKV & WMV
Ecualizador gráfico 7 bandas
Entradas HDMI/MHL, 2AV-in, 1AV-out, 1 cámara trasera
Preparado para Wi-Fi Miracast Dongle (KCA-ML100)
Pantalla líneas guía de aparcamiento

• Características Generales

Formato DIN 2 DIN
Sistema Indicador de Desactivación Si
Función de código de seguridad (creada por el usuario) Si
Operaciones en pantalla (OSD) Si
GUI (Interfase Gráfico de Usuario) Sencillo Si
Fondo de pantalla GUI Seleccionable Si
Color iluminación Iluminación variable
Sensor Táctil Si
Memoria instalador Si
Memoria de mantenimiento Si
Atenuador con retorno progresivo Si
Sensor táctil de tono Si
Sensor Remoto de Infra Rojos (IR) Si, KNA-RCDV331
Reloj digital (24H) Si
Conector ISO Si
Unidad Bluetooth incorporada Si
Firmware actualizable Si

ESPECIFICACIONES:

Monitor Section Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16inch
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
  800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby Digital
MP3/WMA/AAC
Video Decoder MPEG1/MPEG2/DivX
Wow & Flutter Below Measurable Limit
Frequency Response 96k Sampling 20 - 20,000 Hz
48k Sampling 20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 94dB(DVD-Video 96k)
Dynamic Range 91dB(DVD-Video 96k)
DISC Format DVD-Video/DVD-VR/VIDEO-CD/CD-DA
Sampling Frequency 44.1kHz/48kHz
96kHz
Quantifying Bit Number 16/20/24bit
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32
Maximum Power Supply Current DC5V=1A
D/A Converter 24Bit
Audio Decoder MP3/WMA/AAC/WAV/FLAC
Video Decoder MPEG1/MPEG2/H.264/WMV/JPEG/BMP/PNG
HDMI I/F Section TYPE-A
MHL Section Supported Version MHL 2
Maximum Power Supply Current DC5V=900mA
Bluetooth Section Technology Bluetooth Ver3.0+EDR
Frequency 2.402 – 2.480 GHz
Output Power +4dBm (MAX),0dBm (AVE) Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC/AAC/MP3
Multi Profile support Multi Profile
Profile HFP(Hands Free Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP(Audio/Video Remote Control Profile)
GAP(Generic Access Profile)
PBAP(Phonebook Access Profile)
SDP(Service Discovery Profile)
SPP(Serial Port Profile)
DSP Section Graphics equalizer BAND 5Band
Frequency(Hz) 62.5/250/1k/4k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over HIGH PASS FILTER Frequency Through/50/60/80/100/120/150/180/220
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER Frequency 50/60/80/100/120/Through
SLOPE -6/-12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0 - 20.0ft (0.07ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM Frequency range 87.5MHz - 108.0MHz
(Frequency step) (50kHz)
Usable sensitivity 7.2 dBf
S/N:30 dB 0.63 μV / 75 Ohms
Quieting sensitivity 15.2 dBf
S/N:50 dB 1.58 μV / 75 Ohms
Frequency response(±3.0 dB) 30 Hz - 15 kHz
S/N(dB) 68 dB(MONO)
Selectivity Over 80 dB(±400 kHz)
Stereo separation 40 dB(1 kHz)
AM Frequency range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 29 dBμ
Video Color system of external video input NTSC/PAL
External video input level (mini jack) 1Vp-p / 75Ohms
External audio max input level(mini jack) 2V / 25kOhms
Video Output level (RCA jack) 1Vp-p / 75Ohms
Audio Output level (mini jack) 1.2V / 10kOhms
Audio Maximum Power Output 50Wx4
Tipical Power Output Full Bandwidth Power
(at Less than 1%THD)
22Wx4
Preout level(V) 4V / 10kOhms
Preout impedance(Ω) =< 600Ohms
Speaker Impedance(Ω) 4-8 Ohms
General Operating Voltage 14.4V (10.5V to 16V)
Maximum Current Consumption 10A
Installation Dimensions WxHxD 178mm x 100mm x 159mm
7 x 3-15/16 x 6-5/16 inch
206mm x 104mm x 159mm(Including the sub panel part)
Operational Temperature Range -10°C to +60°C
Weight Main unit 2.6kg
5.7 lbs

ESPECIFICACIONES:

Monitor Section Picture size 6.2inches(diagonal) wide
W x H 137.5mm x 77.2mm
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby digital
MP3/WMA/AAC/WAV
Video Decoder MPEG1/MPEG2/DivX
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 22,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 99dB(DVD-Video 96k)
Dynamic range 99dB(DVD-Video 96k)
DISC Format DVD-Video/VIDEO-CD/CD-DA
Sampling frequency 44.1kHz/48kHz
96kHz
Quantifying bit number 16/20/24bit
USB I/F Section USB Standard USB2.0 High Speed
Compatible Devices Mass storage class
File System FAT 16/32
Maximum Power Supply Current DC5V(DC logo) 1.5A
D/A Converter 24bit
Audio Decoder MP3/WMA/AAC/WAV
Video Decoder MPEG1/MPEG2/DivX
Bluetooth Section Technology Bluetooth V3.0
Frequency 2.402 - 2.480 GHz
Output Power +4dBm (MAX),0dBm (AVE) Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC/AAC
Profile HFP(Hands Free Profile) 1.6
A2DP(Advanced Audio Distribution Profile) 1.3
AVRCP(Audio/Video Remote Control Profile) 1.5
GAP(Generic Access Profile)
PBAP(Phonebook Access Profile) 1.2
SDP(Service Discovery Profile)
SPP(Serial Port Profile) 1.2
FM Frequency range
(Frequency step) 87.5MHz - 108.0MHz
(50kHz)
Usable sensitivity
S/N:30 dB 8.2dBf
0.71 μV / 75 Ohms
Quieting sensitivity
S/N:50 dB 17.2 dBf
2.0 μV / 75 Ohms
Frequency response (±3.0 dB) 30 Hz - 15 kHz
S/N (dB) 64 dB(MONO)
Selectivity Over 80 dB(±400 kHz)
Stereo separation 40 dB(1 kHz)
AM Frequency range
(Frequency step) 530kHz - 1700kHz
(10kHz)
Usable sensitivity 29 dBμ
Audio Maximum Power (Front&Rear) 50Wx4
Full Bandwidth Power (Front&Rear) 22Wx4
(at less than 1%THD)
Preout level(V) 4V / 10kOhms
Preout Impedance(Ω) =< 600 Ohms
Speaker Impedance(Ω) 4-8 Ohms
Equalizer BAND 13Band
Frequency(Hz) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
Q factor 1.35/1.5/2.0
2Way X'Over
    Tweeter Frequency(Hz) 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
    Front (HPF) Frequency(Hz) Through/30/40/50/60/70/80/90/100/120/150/180/220/250
Slope -6/-12/-18/-24 [dB/Oct.]
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
    Rear (HPF) Frequency(Hz) Through/30/40/50/60/70/80/90/100/120/150/180/220/250
Slope -6/-12/-18/-24 [dB/Oct.]
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
    SW (LPF) Frequency(Hz) 30/40/50/60/70/80/90/100/120/150/180/220/250/Through
Slope -6/-12/-18/-24 [dB/Oct.]
Phase Normal/Reverse
Gain -8/-7/-6/-5/-4/-3/-2/-1/0 [dB]
Position Front / Rear /Subwoofer Delay 0 - 20.0ft (0.07ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
General Operating voltage 14.4V(10.5V to 16V)
Maximum Current consumption 10A
Installation Dimensions WxHxD 178mm x 100mm x 162mm
7 x 3-14/16 x 6-6/16 inch
Operational temperature range -10°C to +60°C
Weight Main unit 1.7kg
3.7lbs

ESPECIFICACIONES:

FM

Frequency Range

(Frequency step) 87.5MHz - 108MHz
(50kHz)

Usable Sensitivity

S/N:26dB 8.2dBf
(0.71μV/75Ω)

Quieting Sensitivity

DIN S/N 46dB 17.2dBf
(2.0μV/75Ω)

Frequency Response

(±3.0dB) 30Hz-15kHz

S/N

64.0dB(MONO)

Stereo Separation

40dB(1kHz)

AM

Frequency Range

(Frequency step) 530kHz - 1700kHz
(10kHz)

Usable Sensitivity

S/N:20dB 29dBμ (28.2μv)

Preout Level(mV)/Load-Unbalanced

2500mV/10kΩ (USB)

Preout Impedance(Ω)

¿600Ω

Speaker Impedance(Ω)

4-8Ω

USB I/F

USB

USB 1.1 / 2.0 Full speed

File System

FAT12 / 16 / 32

Maximum Supply current

DC5V(DC logo) 1.5A

MP3 decode

Compliant with MPEG-1/2 Audio Layer-3

WMA decode

Compliant with Windows Media Audio

AAC Decode

AAC-LC ".aac" files

WAV Decode

Linear-PCM

FLAC Decode

FLAC file (Up to 48kHz/16bit)

AUX Input

Frequency Response

20Hz~20KHz ±3dB

Input Maximum Voltage

1000mV

Input Impedance

30KΩ

AMP

Maximum Power

50wx4

Full Bandwidth Power

(at less than 1%THD) 22wx4

TONE

Band1

62.5Hz ±9dB

Band2

100Hz ±9dB

Band3

160Hz ±9dB

Band4

250Hz ±9dB

Band5

400Hz ±9dB

Band6

630Hz ±9dB

Band7

1kHz ±9dB

Band8

1.6kHz ±9dB

Band9

2.5kHz ±9dB

Band10

4kHz ±9dB

Band11

6.3kHz ±9dB

Band12

10kHz ±9dB

Band13

16kHz ±9dB

Bluetooth

Version

Bluetooth V2.1+EDR /Bluetooth 3.0

Frequency Range

2.402-2.480GHz

Output Power

+4dBm(MAX)¿0dBm(AVE)Power Class 2

Maximum Communication range

Line of sight approx.10m(32.8ft)

Profile

HFP(Hands Free Profile)
SPP(Serial Port Profile)
PBAP(Phonebook Access Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP(Audio/Video Remote Control Profile)

GENE

Operating voltage

(10.5~16v allowable) 14.4V

Maximum Current Consumption

10A

Operational Temperature Range

-10°C to +60°C

Installation Size

182(mm)
7-3/16(in)
53(mm)
2-1/16(in)
107(mm)
4-3/16(in)

Weight

0.7(kg)
1.54(lbs)

ESPECIFICACIONES:

FM Frequency Range
(Frequency step)     87.5MHz - 108MHz
    (50kHz)
Usable Sensitivity
S/N:26dB     8.2dBf
    (0.71μV/75Ω)
Quieting Sensitivity
DIN S/N 46dB     17.2dBf
    (2.0μV/75Ω)
Frequency Response
(±3.0dB)     30Hz-15kHz
S/N     64.0dB(MONO)
Stereo Separation     40dB(1kHz)
AM Frequency Range
(Frequency Step)     530kHz - 1700kHz
    (10kHz)
Usable Sensitivity
S/N:20dB     29dBμ (28.2μv)
CD Laser Diode     GaAlAs
Digital Filter(D/A)     8 Times OverSampling
Spindle Speed     500~200rpm (CLV)
Wow & Flutter     Below Measurable Limit
Frequency Response     20Hz-20kHz(±1dB)
Total Harmonic Distortion     0.01%(1kHz)
S/N Ratio (dB)     105dB(1kHz)
Dynamic Range     90dB
Channel Separation     85dB
MP3 Decode     Compliant with MPEG-1/2 Audio Layer-3
WMA Decode     Compliant with WINDOWS MEDIA AUDIO
AAC Decode     -
WAV Decode     -
Preout Level(mV)/Load-Unbalanced     2500mV/10kΩ(CD)
Preout Impedance(Ω)     ¿600Ω
Speaker Impedance(Ω)     4-8Ω
USB I/F USB     USB 1.1 / 2.0
File System     FAT12 / 16 / 32
Maximum Supply current     DC5V(DC logo) 1A
MP3 decode     Compliant with MPEG-1/2 Audio Layer-3
WMA decode     Compliant with Windows Media Audio
AAC Decode     -
WAV Decode     Linear-PCM
AUX Input  Frequency Response     20Hz~20KHz ±3dB
Input Maximum Voltage     1000mV
Input Impedance     30KΩ
AMP Maximum Power     50wx4
Full Bandwidth Power
(at less than 1%THD)     22wx4
Tone Bass     200Hz ±8dB
Middle     2.5kHz ±8dB
Treble     12.5kHz ±8dB
Gene Operating voltage
(10.5~16v allowable)     14.4V
Maximum Current Consumption     10A
Operational Temperature Range     0°C to +40°C

ESPECIFICACIONES:

• 4 ch. Class D Full Range Amplifier
• 275w x 4 ohm
• 550w x 2 ohm
• 1,100w x 4 ohm bridged
• Total harmonic Distortion: <0.1%
• Frecuency Response: 10Hz-40Hz
• Signal-to-Noise Ratio: 104dB
• Input sensitivity: 200mV-6V
• Variable 12dB High Pass Filter: 50.500Hz
• Variable 12dB low pass filter: 10-250Hz
• 6dB or 12dB 45Hz Bass Boost switch
• Pre-Amp low level RCA signal Input
• Pre-Amp low level RCA signal output
• 4ga, Power & 8ga. Speaker Terminals
• Dimensions: 2”h x 10”w x 16.25”/

ESPECIFICACIONES:

1. Screen Size / Aspect Ratio6.2'' W/ 16: 9
2. ResolutionWVGA(800x480)
3. LED BacklightYes
4. Touch Panel OperationYes
5. Background Picture and Video1BGP
6. Spectrum AnalyzerNO
7. Motorized DisplayNO
8. Selected Angle SettingNO
9. Last Angle MemoryNO

• MEDIA PLAYBACK SECTION

1. CD-R/RW, DVD-R/RW CompatibleYes
2. DVD Video PlaybackYes
3. Music CD PlaybackYes
4. Video CD PlaybackYes
5. MP3/WMA/iTunes AAC PlaybackDVD/CD/USB
6. Divx Video File PlaybackDVD/CD/USB
7. MPEG-4 PlaybackDVD/CD/USB
8. WAV/FLAC Audio PlaybackDVD/CD/USB
9. Linear PCM DecoderYes
10. Dolby Digital DecoderYes
11. DVD Chapter / Title / Time Direct SearchYes
12. DVD Auto PlayYes
13. VCD Playback ControlYes
14. Repeat (Disc / Track)Yes

• TUNER SECTION

1. Supertuner IIIDYes
2. 24 Stations/ 6 PresetsYes
3. BSM (Best Station Memory)Yes
4. Local Seek TuningYes
5. RDSYes

• AUDIO SECTION

1. Built-in AmplifierMOSFET 50 W x 4
2. Crossover networkHPF/LPF
3. Equalizer5 Band Graphic
4. Subwoofer controlYes
5. SR AirNO
6. Advanced Sound RetreiverNO
7. Auto EQ (CD-MC20 Required)NO
8. Hi-Volt RCA Preouts2(2V)
9. BLUETOOTH / IPOD / SD MEMORY CARD / USB CONTROL
10. Built -in BluetoothYes
11. Direct control for iPod/iPhoneUSB
12. USB PortRear

• GENERAL

1. Aux Input (3.5 mm mini-jack)Rear( Audio/Video)
2. Rear-View Camera InputYes
3. Composite A/V Input1 (Audio/Video)
4. Composite Video Out put1
5. Color Customization3 Display Colors
6. Multi-Language Display (English ,French, Portuguese, German, Dutch, Russian, Arabic, Persian, Hebrew )Menu / ID3 Tag
7. Display Off ModeYes
8. Remote ControlYes
9. Wired Remote InputYes
10. Learning Steering Wheel ControlYes

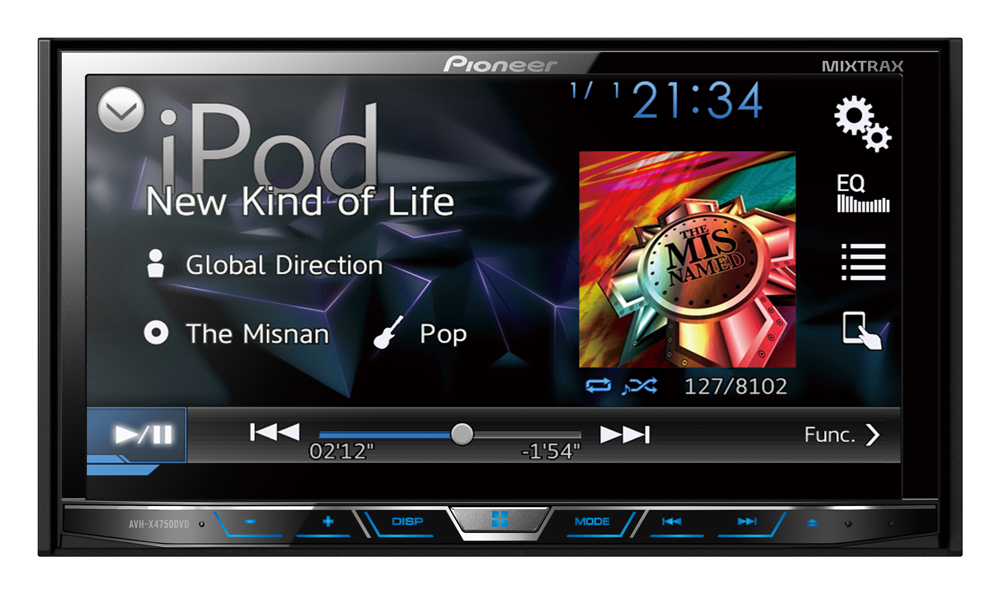

ESPECIFICACIONES:

• Reproducción:

1. DVD
2. CD, CD-R , CD-RW
3. MP3, WMA, WAV, WMV
4. DivX/MPEG -1,-2,-4
5. USB (trasero)
6. iTunes AAC

• MIXTRAX:

1. MIXTRAX EZ para Reproducción de Mezcla Ininterrumpida Rápida

• Pantalla:

1. Pantalla de Panel de Toque WVGA de 7" con luz de fondo LED
2. Color Personable (Pantalla de 5 colores y 112 colores de tecla
3. Pantalla de idiomas Múltiples
4. Proyección de Diapositivas JPEG

• CARACTERÍSTICAS- CONEXIÓN

1. Aux-In:   si (frontal)
2. RGB in: si
3. Presalidas de Alto Voltaje :   x 3 (4V)
4. Entrada USB:   trasero, 1 Amp
5. App Mode: si
6. AppRadio: si
7. MirrorLink Integrado: si
8. Control Directo para iPod/iPhone: si (USB)
9. Control Directo para Algunos teléfonos Android: si (USB)

• CARACTERÍSTICAS- Tuner

1. RDS: si

• CARACTERÍSTICAS- AUDIO

1. Potencia máx de salida:    MOSFET 50W x 4
2. Ecualizador:   Ecualizador Gráfico de 13 Bandas
3. Ecualizador Automático y Ajuste Automático de Tiempo: si, requiere CD-MC20
4. Restaurador de Sonido Avanzado: si

• CARACTERÍSTICAS- GENERALES

1. Control Remoto: si
2. Listo para camera trasera:   si
3. Modo display apagado:   si
4. Listo para Sintonizador de TV Pioneer: si

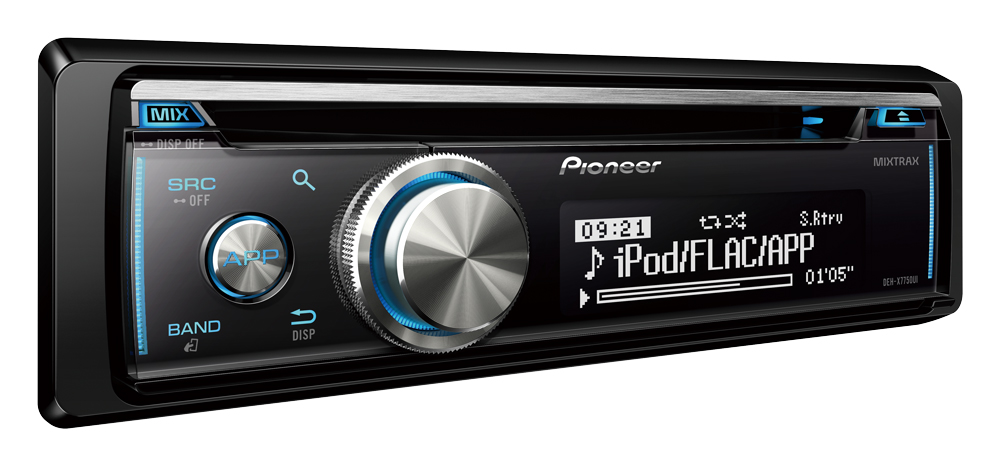

ESPECIFICACIONES:

• Reproducción:

1. CD, CD-R , CD-RW
2. MP3, WMA, WAV
3. AAC,FLAC
4. USB
5. iPod/iPhone
6. Android

• MIXTRAX:

1. MIXTRAX EZ para Reproducción de Mezcla Ininterrumpida Rápida
2. Color centelleante para MIXTRAX
3. Color Separado Personalizable:
4. Más de 210.000 colores

• Bluetooth:

1. Bluetooth para Lamada de Manos Libres y Audio Inalámbrico
2. Restaurador de Sonido Avanzado para Audio Inalámbrico Bluetooth
3. Compatible con Siri Eyes Free

• Media App Control:

1. Para iPod/iPhone
2. Para Android
3. Pantalla:
4. Pantalla LCD de Punto Total
5. Pantalla de Idiomas Múltiples
6. Luz de Fondo LED
7. Línea de iluminación
8. Temporizador de iluminación

• CARACTERÍSTICAS- CONEXIÓN

1. Aux-In:   sí
2. Presalidas de Alto Voltaje :   x 3 (4V)
3. Entrada USB:  sí iluminado. 1A
4. Preparado para iPod/iPhone:  sí cable requerido
5. Preparado para Android: sí cable requerido
6. Navegador de Música: sí

• CARACTERÍSTICAS- AUDIO

1. Potencia máx de salida:    MOSFET 50W x 4
2. Ecualizador:   Ecualizador Gráfico de 5 Bandas
3. Restaurador de Sonido Avanzado: sí
4. RDS: sí
5. Supertuner IIID: si

• CARACTERÍSTICAS- GENERALES

1. Control Remoto: sí
2. Frontal desmontable:  sí
3. Modo display apagado:   sí
4. Comando Manual: sí



AGOTADO
