ESPECIFICACIONES:

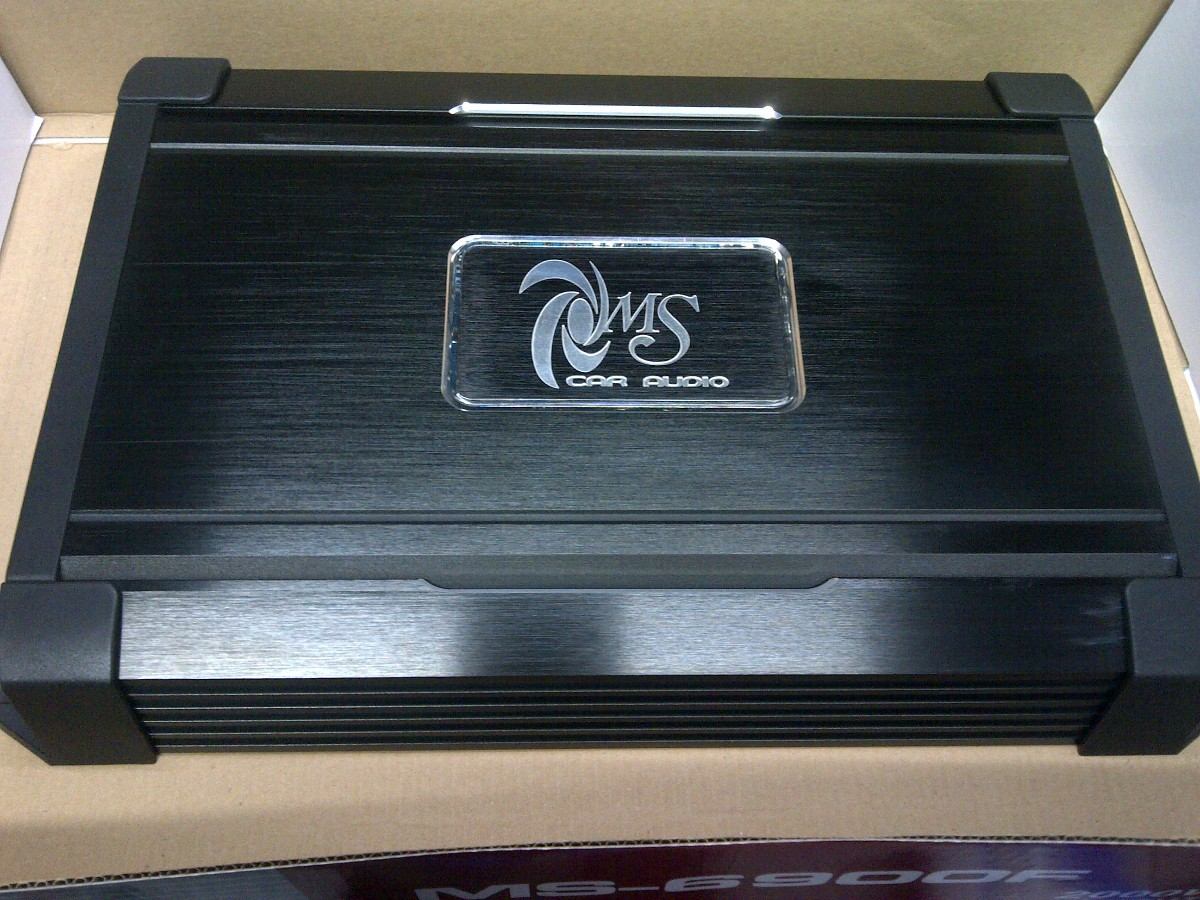

• 4 CHANNEL AMPLIFIER Potencia de salida: 4 ohms, 1 khz 1% thd 180 watss rms por canal 4 ohms, 1 khz 1% thd , Por canal modo puente, mono (bridge) 4 ohms, 1 khz 1% thd 270 WATSS rms - - corssover sub woofer crossover 50-250hz - indicador led de modo - función contractor smart - interruptor ground lift. nuevas, con garantia
• MEDIDAS (L) 373 X (W) 248.5 X (H) 52.5
• RMS POWER : 200 W X 4 CH (4OHMNIOS)
• 2 OHMNIOS 270 X 4 CH
• 4OHMNIOS (BRIDGED) 360 WATSS X 2 CH
• HIGH PASS FILTER : 50HZ- 250HZ
• LOW PASS FILTER : 50HZ- 250HZ
• BASS BOOST :O dB - 12 dB

ESPECIFICACIONES:

------ AGOTADO ------

ESPECIFICACIONES:

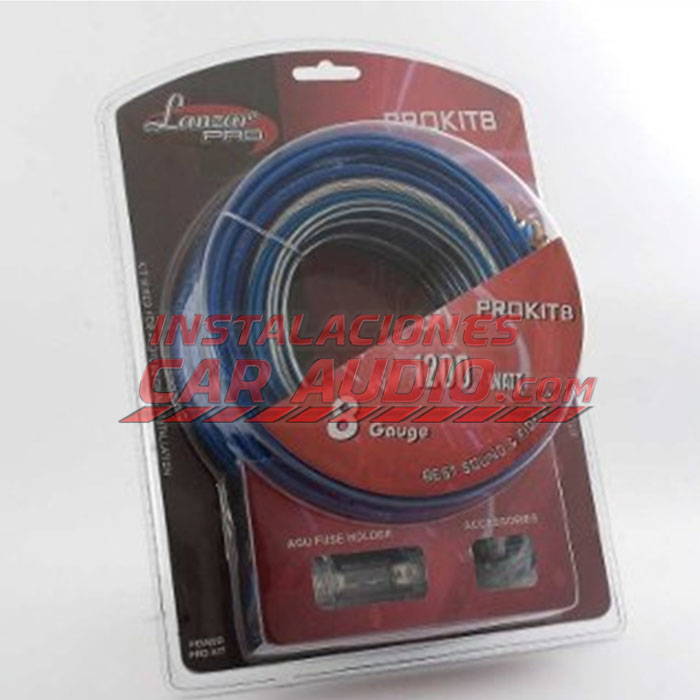

• ULTRA FLEXIBLE TRANSPARENT BLUE POWER CABLE (1BTF)
• ULTRA FLEXIBLE TRANSPARENT SILVER GROUND CABLE (3FT)
• ULTRA FLEXIBLE TRANSPARENT BLUE REMOTE CABLE (15FT)
• TRANSPARENT BLUE INTERCONNECT CABLE (15 FT)
• ULTRA FLEXIBLE TRANSPARENT SPEAKER CABLE (20 FT)
•  ACCESSORIES:
• MINI ANL  FUSE HOLDER
• MINI ANL FUSE
• SPADE TERMINALS 4 PCS
• RING TERMINALS 2 PCS
• BUTT CONNECTOR 1 PC
• CABLE TIE GROMMET 1 PC
• CRIMP CAPS 3 PCS
• WHITE SCREW 1 PC

ESPECIFICACIONES:

• General Features:

digital media receiver with AM/FM tuner (does not play CDs)
built-in amplifier (17 watts RMS CEA-2006/55 peak x 4 channels)
6.2" LCD touchscreen display
built-in Bluetooth for hands-free calling and audio streaming (external mic included)
fits double-DIN (4" tall) dash openings

• Smartphone Features :

built-in iPod, iPhone, and iPad control
Android control through USB
Pandora control with iPhone and Android
Siri Eyes Free Control

• Audio/video Features:

EQ5 5-band equalizer
high- and low-pass filters
subwoofer controls

• Expandability:

inputs: front USB input, two A/V inputs (front and rear), rear-view camera input
outputs: video output, 5-channel preamp outputs (2-volt front, rear, sub)

ESPECIFICACIONES:

• Conexión iPod, iPhone o reproductor de mp3 mediante el puerto .
• 55W x4
• USB/AUX
• Potencia de graves con Mega Bass Potencia máx.

ESPECIFICACIONES:

Cantidad de Canales

4

Marca

Sony

Apple Carplay

No

Conexión 3G

No

NFC

No

Din

1

Pantalla Touch

No

Frontal Desmontable

Si

Control Remoto

Si

Mandos en el timón

No

Entrada Aux

Si

Entrada USB

Si

Entrada SD

No

Entrada Video Cámara Reversa

No

Reproductor CD

Si

Reproductor DVD

No

GPS

No

Bluetooth

No

Conexión a Internet

No

Potencia Máxima

55W x 4

Salida para Subwoofer

Si

Wifi

No

ESPECIFICACIONES:

• SISTEMA DE ILUMINACION AUTOMATICO.
• 55W x4
• FIBRA DE CARBONO
• USB,AUX, FM/AM
• PANTALLA DEALTO CONTRASTE

ESPECIFICACIONES:

• General features:

digital media receiver with AM/FM tuner (does not play CDs)
built-in amplifier (18 watts RMS CEA-2006/55 peak x 4 channels)
built-in Bluetooth connectivity
USB port accommodates Apple devices, select Android phones, and thumb drives
MP3/WMA/WAV/FLAC compatible
works with Pandora (iPhone and Android)
5-band equalizer
detachable face with single-line display
high-contrast LCD display
remote control

• Expandability:

built-in iPod, iPhone, and iPad control
inputs: front USB port, front auxiliary input
outputs: 4-channel preamp outputs (2-volt rear and sub)

ESPECIFICACIONES:

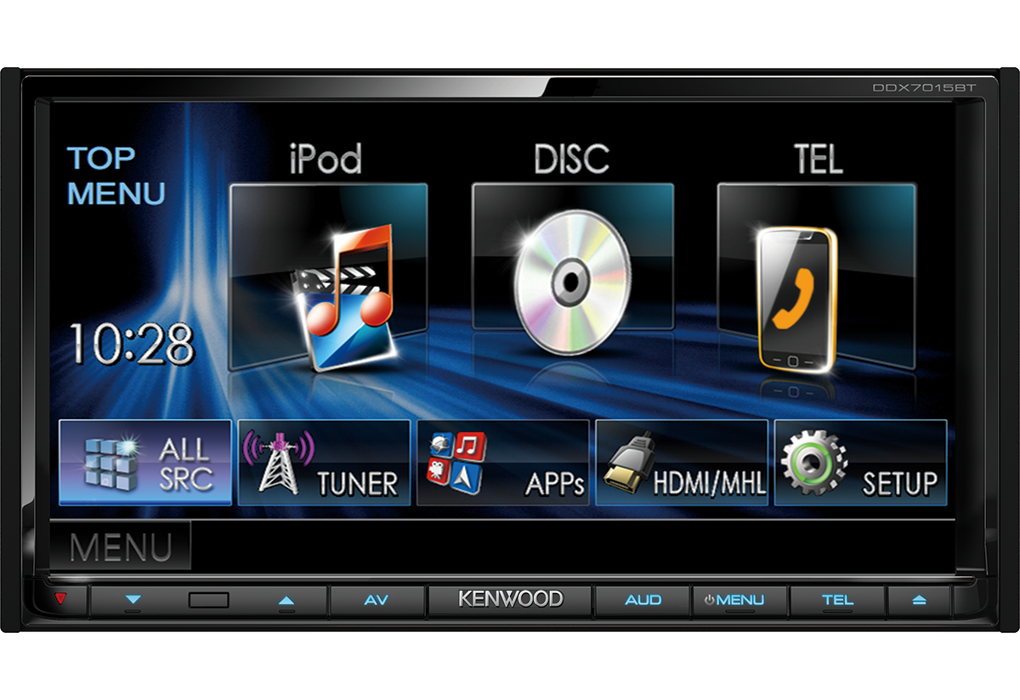

• Características Destacadas

Pantalla táctil 7.0" VGA
Panel frontal autodeslizante
Bluetooth manos libres y Audio Streaming incorporados
Reproducción MP3/WMA/AAC/WAV/FLAC
Reproducción JPEG/MPEG1/MPEG2/MPEG4/H.264/MKV & WMV
Ecualizador gráfico 7 bandas
Entradas HDMI/MHL, 2AV-in, 1AV-out, 1 cámara trasera
Preparado para Wi-Fi Miracast Dongle (KCA-ML100)
Pantalla líneas guía de aparcamiento

• Características Generales

Formato DIN 2 DIN
Sistema Indicador de Desactivación Si
Función de código de seguridad (creada por el usuario) Si
Operaciones en pantalla (OSD) Si
GUI (Interfase Gráfico de Usuario) Sencillo Si
Fondo de pantalla GUI Seleccionable Si
Color iluminación Iluminación variable
Sensor Táctil Si
Memoria instalador Si
Memoria de mantenimiento Si
Atenuador con retorno progresivo Si
Sensor táctil de tono Si
Sensor Remoto de Infra Rojos (IR) Si, KNA-RCDV331
Reloj digital (24H) Si
Conector ISO Si
Unidad Bluetooth incorporada Si
Firmware actualizable Si

ESPECIFICACIONES:

Monitor Section Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16inch
Display system Transparent TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
  800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section D/A Converter 24Bit
Audio Decoder Linear PCM
Dolby Digital
MP3/WMA/AAC
Video Decoder MPEG1/MPEG2/DivX
Wow & Flutter Below Measurable Limit
Frequency Response 96k Sampling 20 - 20,000 Hz
48k Sampling 20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 94dB(DVD-Video 96k)
Dynamic Range 91dB(DVD-Video 96k)
DISC Format DVD-Video/DVD-VR/VIDEO-CD/CD-DA
Sampling Frequency 44.1kHz/48kHz
96kHz
Quantifying Bit Number 16/20/24bit
USB I/F Section USB Standard USB2.0 High Speed
File System FAT 16/32
Maximum Power Supply Current DC5V=1A
D/A Converter 24Bit
Audio Decoder MP3/WMA/AAC/WAV/FLAC
Video Decoder MPEG1/MPEG2/H.264/WMV/JPEG/BMP/PNG
HDMI I/F Section TYPE-A
MHL Section Supported Version MHL 2
Maximum Power Supply Current DC5V=900mA
Bluetooth Section Technology Bluetooth Ver3.0+EDR
Frequency 2.402 – 2.480 GHz
Output Power +4dBm (MAX),0dBm (AVE) Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC/AAC/MP3
Multi Profile support Multi Profile
Profile HFP(Hands Free Profile)
A2DP(Advanced Audio Distribution Profile)
AVRCP(Audio/Video Remote Control Profile)
GAP(Generic Access Profile)
PBAP(Phonebook Access Profile)
SDP(Service Discovery Profile)
SPP(Serial Port Profile)
DSP Section Graphics equalizer BAND 5Band
Frequency(Hz) 62.5/250/1k/4k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over HIGH PASS FILTER Frequency Through/50/60/80/100/120/150/180/220
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER Frequency 50/60/80/100/120/Through
SLOPE -6/-12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0 - 20.0ft (0.07ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM Frequency range 87.5MHz - 108.0MHz
(Frequency step) (50kHz)
Usable sensitivity 7.2 dBf
S/N:30 dB 0.63 μV / 75 Ohms
Quieting sensitivity 15.2 dBf
S/N:50 dB 1.58 μV / 75 Ohms
Frequency response(±3.0 dB) 30 Hz - 15 kHz
S/N(dB) 68 dB(MONO)
Selectivity Over 80 dB(±400 kHz)
Stereo separation 40 dB(1 kHz)
AM Frequency range 530kHz - 1700kHz
(Frequency step) (10kHz)
Usable sensitivity 29 dBμ
Video Color system of external video input NTSC/PAL
External video input level (mini jack) 1Vp-p / 75Ohms
External audio max input level(mini jack) 2V / 25kOhms
Video Output level (RCA jack) 1Vp-p / 75Ohms
Audio Output level (mini jack) 1.2V / 10kOhms
Audio Maximum Power Output 50Wx4
Tipical Power Output Full Bandwidth Power
(at Less than 1%THD)
22Wx4
Preout level(V) 4V / 10kOhms
Preout impedance(Ω) =< 600Ohms
Speaker Impedance(Ω) 4-8 Ohms
General Operating Voltage 14.4V (10.5V to 16V)
Maximum Current Consumption 10A
Installation Dimensions WxHxD 178mm x 100mm x 159mm
7 x 3-15/16 x 6-5/16 inch
206mm x 104mm x 159mm(Including the sub panel part)
Operational Temperature Range -10°C to +60°C
Weight Main unit 2.6kg
5.7 lbs
