ESPECIFICACIONES:

• APK Series Monoblock Class D Car Amplifier
• RMS Power Rating:Max power output: 3500 watts
• 4 ohms: 1040 watts x 1 chan.
• 2 ohms: 1940 watts x 1 chan.
• 1 ohm: 3000 watts x 1 chan.
• High purity copper trace circuit boards
• Wired remote bass level control included
• Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
• Mono channel operation
• Variable low-pass filter (35-250 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 10-50 Hz)
• 0/1 gauge power and ground wiring is required for installation

ESPECIFICACIONES:

Class D Power Amplifier - 1600 watts

For the benefit of all our customers, our new dealer exclusive amplifier line will carry a 1-year extended nanufacturer's warranty (giving you a total of 2 years from the date of purchase)

This will be validated by the dealer logging into http://www.audiopipe.com, and creating an account and registering the product. In addition, the product will need to be purchased and installed by the dealer in order for this extended warranty to be valid. we feel that this added incentive will prove to be beneficial to both dealers and consumers alike.

• Maximum Power Output: 1600W
• RMS @ 4 Ohm (<1% DISTORTION): 650W
• RMS @ 2 Ohm (<1% DISTORTION): 1000W
• RMS @ 1 Ohm (<1% DISTORTION): 1600W
• Input level: 0.2-5V • Frequency Response: 8-180Hz
• LPF: 40-180Hz • SUBSONIC filter: 5-50Hz
• Bass Boost Frequency: 30-80Hz
• Bass Boost level: 0-12dB
• THD at 4 Ohm load 30% Rated Power: <0.2%
• Signal Noise Ratio: >70dB
• Best Efficiency: >85%
• Minimum Load: 1 Ohm
• Optional Remote: YES
• Bridgeable with Same Amplifier: YES
• Overload Protect System: YES
• Short Circuit Test(max. power): PASS
• Overheat Protect Temperature: 80°C / 176°F
• Component & PCB: SMT & Double Side Board
• Transparent Isolation Connector: YES

ESPECIFICACIONES:

• APMI Series Monoblock Class D Car Amplifier
• RMS Power Rating:Max power output: 2000 watts
• 4 ohms: 770 watts x 1 chan.
• 2 ohms: 1300 watts x 1 chan.
• 1 ohm: 1944 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Parametric Bass Boost Equalizer
• Soft start turn-on
• Preamp RCA output to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity: 200mV - 5V
• Frequency Response: 8 - 180 Hz
• Total Harmonic Distortion (THD): <0.2%
• Signal to Noise Ration: >70dB
• Variable low-pass filter: 40 - 180 Hz
• Subsonic filter: Off - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 30 - 80 Hz (variable)
• Fuse Rating: 150A x 1

AMPLIFICADOR AUDIOPIPE APMI-4080

Amplificador de 1200w clase AB

Potencia nominal RMS: 4 ohmios: 80 vatios x 4 canales.

                                             2 ohmios: 115 vatios x 4 canales.

                                             1 ohmio: 160 vatios x 2 canales.

Potencia máxima de salida: 1200 vatios

Control remoto de nivel de graves con cable incluido

Refuerzo de graves variable (refuerzo de graves de 0 a +12 dB a 30-60 Hz)

operación 4 o 2 canales

Entradas de nivel de altavoz (alto nivel) con detección de señal para encendido automático

Filtro de paso bajo variable (50-1.200 Hz)

Filtro subsónico (50 Hz)

Dimensiones: 6 "W x 8.5" L x 2 "H

ESPECIFICACIONES:

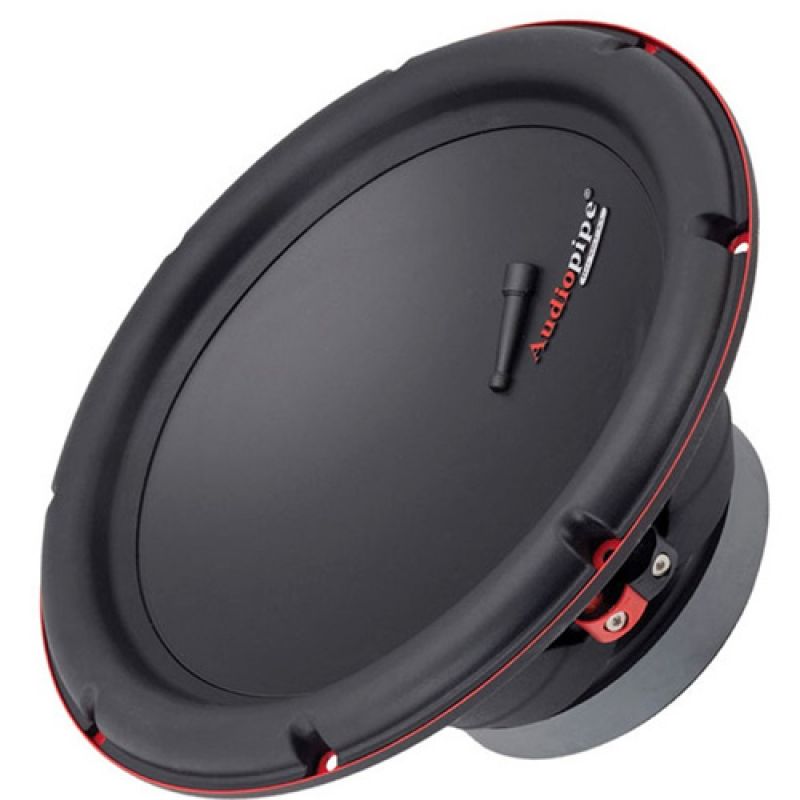

• 12" EXT Series Subwoofer
• Power Handling:Recommended power range: 200 - 375 watts RMS
• Peak: 750 watts
• RMS: 375 watts
• Impedance: Single 4 ohm
• One piece polypropylene cone
• Butyl rubber surround
• Powdered black paint steel basket
• Patent Pipe multi-connect terminals
• 2" Four-layer single voice coil BASV
• 60 oz Single magnet structure
• Frequency response: 24-1,100 Hz
• Sensitivity: 89 dB
• Mounting Depth: 6"

ESPECIFICACIONES:

•  4-Layer One Piece Aluminum Voice Coil
•  One Piece Inverted Candy Color Aluminum Cone
•  Pipe Shape Patent Cast Aluminum Basket
•  Double-stacked Magnet
• 15" Dual 4 ohm TXX-APA Series Subwoofer
• Power Handling:
• Peak: 2000 watts
• RMS: 1000 watts
• One piece inverted aluminum cone
• 3" 4-layer voice coil
• Top-mount depth: 8-1/4"
• Frequency Response: 20-600Hz
• Sensitivity: 98.6dB
• Color: Candy Blue
• Double stacked magnet

ESPECIFICACIONES:

• • Double side FR-4 PCB, high quality SMD components.
• • Full MOSFET circuit design.
• • Subsonic adjustable.
• • Low pass filter adjustable.
• • Bass boost frequency and level adjustable.
• • Phase adjustable.
• • Overload, short circuit, thermal, low voltage protection.
• • Remote bass level control (with remote bass knob).
• Consumer Line Series Monoblock Class D Car Amplifier
• RMS Power Rating:Double side FR-4 PCB with high quality SMD components4 ohms: 1800 watts x 1 chan.
• 2 ohms: 3000 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
• Mono channel operation
• Variable low-pass filter (40-180 Hz, 24 dB/octave)
• Subsonic filter (24 dB/octave at 15 Hz)
• Overload, short circuit, thermal and low voltage system protection circuitry
• Phase adjustable
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation

ESPECIFICACIONES:

Features:
• 1 Ohm load stable.
• Double side FR-4 PCB, high quality SMD components.
• Full MOSFET circuit design.
• Subsonic adjustable.
• Low pass filter adjustable.
• Bass boost frequency and level adjustable.
• Phase adjustable.
• Overload, short circuit, thermal, low voltage protection.
• Remote bass level control (with remote bass knob).

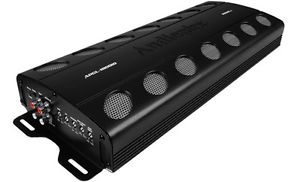

Amplifier Specifications
Amplifier Series Consumer Line (Audiopipe)
Amplifier Class D
Number of Channels 1-Mono
Total Peak Power Output 1800 watts
Bass/Gain Remote Yes
Maximum Input Gauge Size 1/0 AWG

Specifications
THD at Rated RMS Power .2%
Total RMS Power Output 1800 watts
Built-in Crossover Low-pass (LP)
Low-Pass Crossover Frequency 40 - 180 Hz
Minimum Impedance Unbridged 1 ohms
Signal-to-Noise Ratio 70 dB
Bass Boost 0 - 12 dB
Protection

Overload
Short circuit
Thermal

Input Capability 16V
Fuse Rating 120A x 1

Specifications
Color Black
Made By Audiopipe
Model Number APCL18001D
UPC 784644416013
Weight 12.9

ESPECIFICACIONES:

Features:
• 1 Ohm load stable.
• Double side FR-4 PCB, high quality SMD components.
• Full MOSFET circuit design.
• Subsonic adjustable.
• Low pass filter adjustable.
• Bass boost frequency and level adjustable.
• Phase adjustable.
• Overload, short circuit, thermal, low voltage protection.
• Remote bass level control (with remote bass knob).

Amplifier Specifications
Amplifier Series Consumer Line (Audiopipe)
Amplifier Class D
Number of Channels 1-Mono
Total Peak Power Output 1800 watts
Bass/Gain Remote Yes
Maximum Input Gauge Size 1/0 AWG

Specifications
THD at Rated RMS Power .2%
Total RMS Power Output 1800 watts
Built-in Crossover Low-pass (LP)
Low-Pass Crossover Frequency 40 - 180 Hz
Minimum Impedance Unbridged 1 ohms
Signal-to-Noise Ratio 70 dB
Bass Boost 0 - 12 dB
Protection

Overload
Short circuit
Thermal

Input Capability 16V
Fuse Rating 120A x 1

Specifications
Color Black
Made By Audiopipe
Model Number APCL18001D
UPC 784644416013
Weight 12.9
