ESPECIFICACIONES:

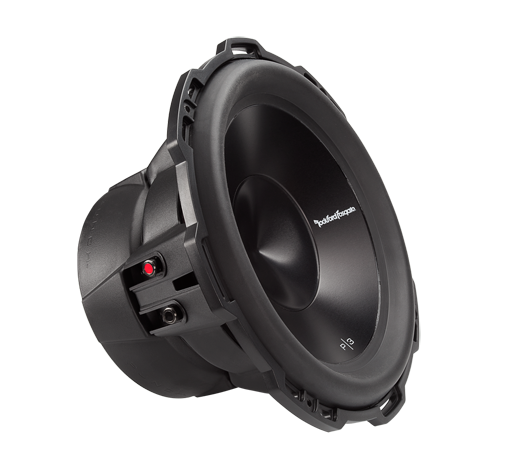

The P3D2-12 is the best performing Rockford Fosgate Punch series subwoofer. Built to max out your car audio system, the P3 12” features Dual 2-Ohm voice coils (DVC), 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The  P3D2-12 12 inch car subwoofer also includes:

• Custom 10-AWG nickel plated push terminals
• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Anodized aluminum cone and dustcap
• Protective PVC textured magnet cover
• Diamond cut cast aluminum trim ring with optional grille
• StampCast basket with integrated spider venting

ESPECIFICACIONES:

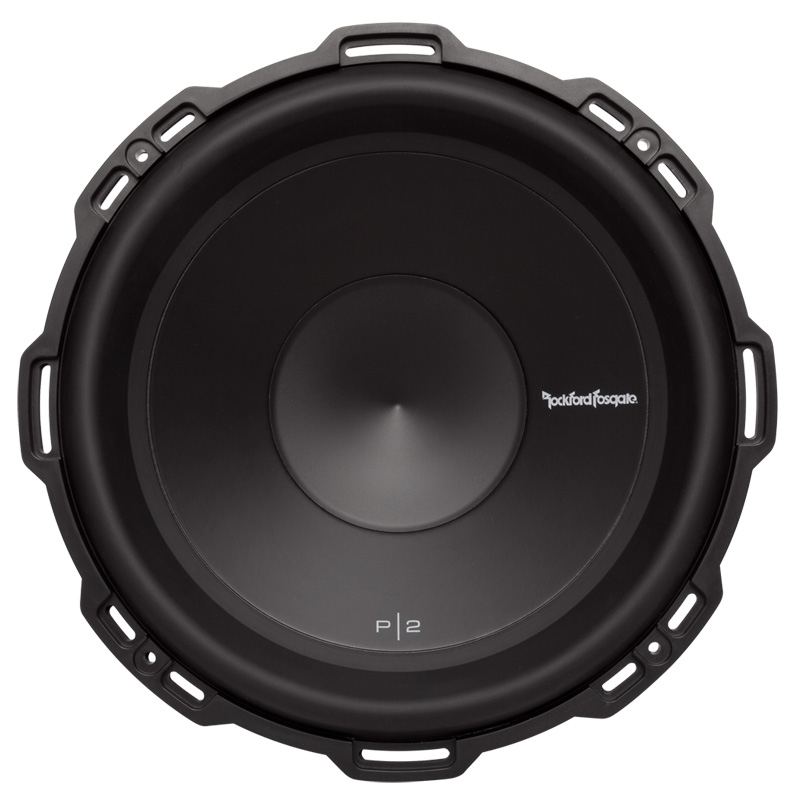

The Rockford Fosgate P2 12” subwoofer continues “The PUNCH” tradition of generating powerful car and truck audio. The P2D2-12 features a 2-Ohm Dual voice coil (DVC), 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring. The P2D2 12 inch car subwoofer also includes:

1. Dual linear spider with embedded 16 AWG tinsel leads
2. Custom 10-AWG nickel plated push terminals
3. Extended pole piece and bumped vented backplate
4. High-temp voice coil with spun-laced Nomex® re-inforcement collar
5. Protective PVC textured magnet cover
6. Kevlar fiber reinforced paper cone
7. StampCast basket with integrated spider venting
8. Diamond cut cast aluminum trim ring with optional grille

ESPECIFICACIONES:

• Potencia Max 250W
• Potencia RMS 125W
• Impedancia 4 ohms
• Tecnologia FLEXFIT
• Cono de fibra reforzada

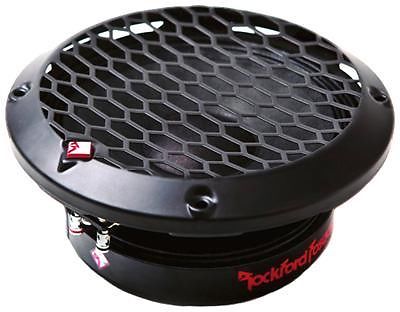

"PM"series created by Rockford Fosgate distributor in Panama is the best trunk audio midrange driver.
Achieves high efficiency fiber mixed paper cones, giant ferrite magnets, stamp frame adoption and brings an energetic sound.

[Specification]
-20 Cm midrange drivers.
• Max input: 250 W
-Rated input power: 125 W
-Nominal impedance: 4 Ω
-Frequency response: 80 Hz ~ 5 kHz
-Efficiency: 95 dB
-Mounting hole diameter: 181 mm
-Mounting depth: 74 mm
● speaker Grill: size （ width × height ） 212 x 23.3 mm

ESPECIFICACIONES:

• 1-1/2" Punch Series Car Tweeter
• Power Handling:Recommended power range: 15 - 50 watts RMS
• Peak: 100 watts
• RMS: 50 watts
• 4 ohms impedance, also available in 8 ohms
• Machined Aluminum bullet tweeter construction
• High-temperature voice coil
• Integrated 6dB high-pass crossover filter
• Flush mountable basket design
• CEA-2031 compliant tweeter
• Designed for high SPL systems
• Sensitivity: 105dB
• Frequency response: 4,000-20,000 Hz
• Top-mount depth: 2-5/8"

ESPECIFICACIONES:

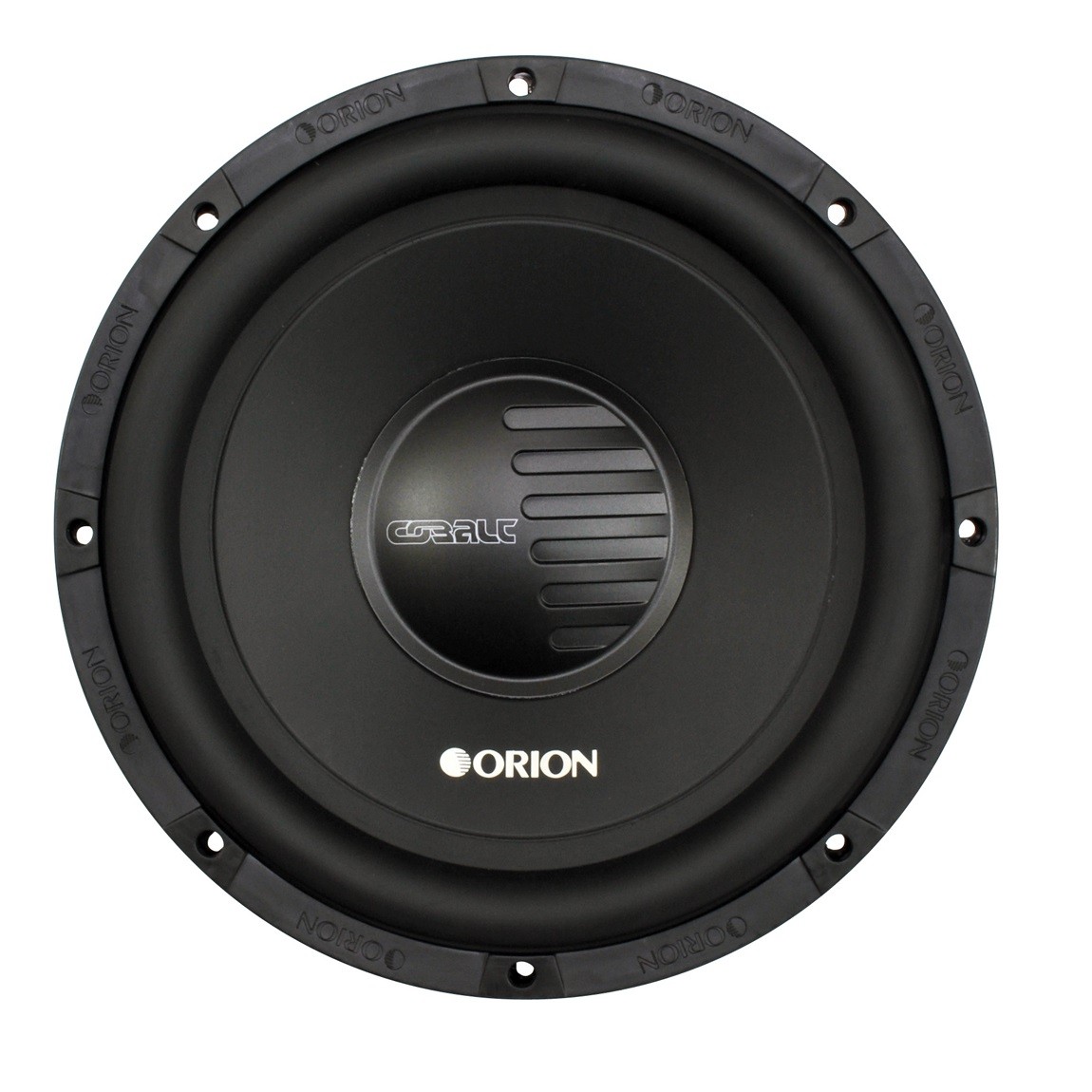

• 12" Single 4 Ohm Cobalt Series Subwoofer
• Power Handling:
• Peak: 500 watts
• RMS: 200 watts
• Impedance: Single 4 Ohm
• UV-treated paper cone woofer
• Nitrile-butadiene rubber surround
• Polypropylene dust cap
• Custom stamped steel frame
• Interlaced Conex spider
• Stitched and looped tinsel leads
• Rugged spring terminals up to 10-gauge
• 3-stage vented back plate
• 1.5" high temperature copper voice coil with Kapton former
• Frequency response: 25-250 Hz
• Sensitivity: 87.2 dB

ESPECIFICACIONES:

• APK Series Monoblock Class D Car Amplifier
• RMS Power Rating:Max power output: 4500 watts
• 4 ohms: 1350 watts x 1 chan.
• 2 ohms: 2500 watts x 1 chan.
• 1 ohm: 4300 watts x 1 chan.
• High purity copper trace circuit boards
• Wired remote bass level control included
• Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
• Mono channel operation
• Variable low-pass filter (35-250 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 10-50 Hz)
• 0/1 gauge power and ground wiring is required for installation

ESPECIFICACIONES:

• APK Series Monoblock Class D Car Amplifier
• RMS Power Rating:Max power output: 3500 watts
• 4 ohms: 1040 watts x 1 chan.
• 2 ohms: 1940 watts x 1 chan.
• 1 ohm: 3000 watts x 1 chan.
• High purity copper trace circuit boards
• Wired remote bass level control included
• Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
• Mono channel operation
• Variable low-pass filter (35-250 Hz, 24 dB/octave)
• Subsonic filter (24 dB at 10-50 Hz)
• 0/1 gauge power and ground wiring is required for installation

ESPECIFICACIONES:

Class D Power Amplifier - 1600 watts

For the benefit of all our customers, our new dealer exclusive amplifier line will carry a 1-year extended nanufacturer's warranty (giving you a total of 2 years from the date of purchase)

This will be validated by the dealer logging into http://www.audiopipe.com, and creating an account and registering the product. In addition, the product will need to be purchased and installed by the dealer in order for this extended warranty to be valid. we feel that this added incentive will prove to be beneficial to both dealers and consumers alike.

• Maximum Power Output: 1600W
• RMS @ 4 Ohm (<1% DISTORTION): 650W
• RMS @ 2 Ohm (<1% DISTORTION): 1000W
• RMS @ 1 Ohm (<1% DISTORTION): 1600W
• Input level: 0.2-5V • Frequency Response: 8-180Hz
• LPF: 40-180Hz • SUBSONIC filter: 5-50Hz
• Bass Boost Frequency: 30-80Hz
• Bass Boost level: 0-12dB
• THD at 4 Ohm load 30% Rated Power: <0.2%
• Signal Noise Ratio: >70dB
• Best Efficiency: >85%
• Minimum Load: 1 Ohm
• Optional Remote: YES
• Bridgeable with Same Amplifier: YES
• Overload Protect System: YES
• Short Circuit Test(max. power): PASS
• Overheat Protect Temperature: 80°C / 176°F
• Component & PCB: SMT & Double Side Board
• Transparent Isolation Connector: YES

ESPECIFICACIONES:

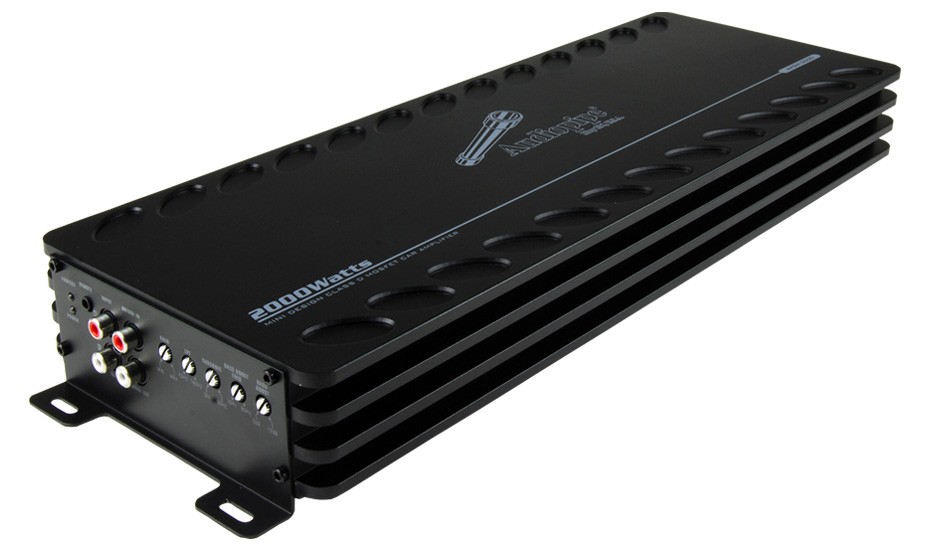

• APMI Series Monoblock Class D Car Amplifier
• RMS Power Rating:Max power output: 2000 watts
• 4 ohms: 770 watts x 1 chan.
• 2 ohms: 1300 watts x 1 chan.
• 1 ohm: 1944 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Parametric Bass Boost Equalizer
• Soft start turn-on
• Preamp RCA output to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity: 200mV - 5V
• Frequency Response: 8 - 180 Hz
• Total Harmonic Distortion (THD): <0.2%
• Signal to Noise Ration: >70dB
• Variable low-pass filter: 40 - 180 Hz
• Subsonic filter: Off - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 30 - 80 Hz (variable)
• Fuse Rating: 150A x 1
