Bajo Preamplificado PowerBass RTA-112 12"

ESPECIFICACIONES:

12" Amplified Bass Enclosure
Power Handling (RMS/Peak):
200/400 watts
Nominal Impedance: 4-ohm
Frequency Response: 30Hz - 250Hz
Efficient Poly Cone Woofer Application specific woofer with NBR rubber surround
Bulit-in Class A/B Amplifier High Powered MOSFET Amplifier
Stylish Two-tone Vinyl RFG aviation grade vinyl for high wear resistance
Computer Optimized Acoustic Chamber
Perfectly tuned for the automotive environment
12dB Bass EQ Circuitry Variable BASS EQ
@45Hz for precise bass tuning
High / Low Input Compatible with OEM or aftermarket radios
Variable Remote Level Control (Included)
Height: 13.5 in
Width: 18.75 in
Top Depth: 12.25 in
Bottom Depth: 14.4 in

Bajo Preamplificado PowerBass RTA-110 Single 10-Inch

ESPECIFICACIONES:

10" Amplified Bass Enclosure
Power Handling (RMS/Peak):
175/350 watts
Nominal Impedance: 4-ohm
Frequency Response: 33Hz - 250Hz
Efficient Poly Cone Woofer Application specific woofer with NBR rubber surround
Bulit-in Class A/B Amplifier High Powered MOSFET Amplifier
Stylish Two-tone Vinyl RFG aviation grade vinyl for high wear resistance
Computer Optimized Acoustic Chamber
Perfectly tuned for the automotive environment
12dB Bass EQ Circuitry Variable BASS EQ
@45Hz for precise bass tuning
High / Low Input Compatible with OEM or aftermarket radios
Variable Remote Level Control (Included)
Height: 12.25 in
Width: 17 in
Top Depth: 11.4 in
Bottom Depth: 13.75 in

Bajo Powerbass 15" XL-1504D

ESPECIFICACIONES:

Powerbass XL-1504D 15" 1000 watt Dual 4 Ohm Car Stereo Bass Subwoofer
Size: 15 in
Power Handling:
Peak: 1000 watts
RMS: 500 watts
Nominal Impedance: Dual 4-ohm
Proprietary 4-layer, Non-pressed Paper, DDC Finish Cone Dynamic Damping Coating (DDC)
Proprietary Composite Polycarbonate/Glass Fiber Basket
Dual 4-ohm Voice Coil
2.5” Vented BASV Voice Coil Formers
High Roll Santoprene Surround
XTRA Large Motor Structures
Chrome Push Terminals
Optimally Designed for Both Sealed or Ported Enclosures
Voice Coil Size: 2.5 in
Frequency Response: 24Hz-400Hz
Sensitivity: 93 dB
Cutout Diameter: 13.875" (352mm)
Mounting Depth: 7.5 in

Size: 12"
Power Handling: 850 watts RMS/1700 watts Peak
Nominal Impedance: 2 x 1 Ohm
Voice Coil Size: 3"
Frequency Response: 31 Hz - 450 Hz
Sensitivity: 91 dB
Motor Structure: 552 oz
Mounting Depth: 7,13"
Depth: 197 mm

T/S Parameters:

VC Impedance (ohms): 1 Ohm + 1 Ohm
Test Impedance: 2.07 ohm
Fs: 32.3 Hz
SD: 530.9 sqCM
Vas: 36 Liter
Cms: 97.0 µM/N
Mms: 250.31 g
BL: 15.36
Qms: 4.57
Qes: 0.4
Qts: 0.39
No: 0.265 %
Spl: 91 dB
Xmax: 13.5 mm

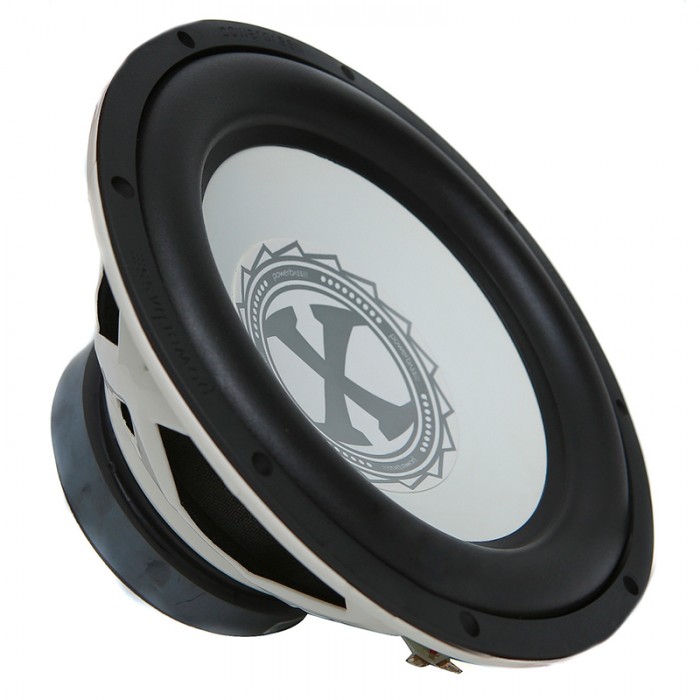

Bajo Powerbass 12" XL-124MF

ESPECIFICACIONES:

XL-124MF 12" Marine Subwoofer

Marine Grade 12" Subwoofer
Injection Molded UV-Treated White Polypropylene Cone
TPO Thermoplastic Polyurethane Surround
2.0" KSV Voice Coil Former
120 oz. Motor Structure
Insulated Tinsel Leads
Marine Grade Spider
White Powder Coated Stamped Steel Baskets
Gold Plated Input Terminals
250 Watts RMS/500 Watts Max

XL-124MF MARINE GRADE 12" SUBWOOFER

What better way to enjoy your day being out on the water in your boat is listening to your favorite music as well.

We have engineered the best musical reproduction solution with our XL Marine Grade woofers. They feature White UV inhibited Powder Coated Baskets, White UV Inhibited Poly Woofer Cone, Marine Grade Spider with Gold Input Terminals that delivers the best sonic bass reproduction on the water.

Sit back and relax knowing that you have put your music in the engineering hands of PowerBass.

Specifications

Nominal Impedance: 4-ohm
BL: 11.6
Voice Coil Size: 2 in
Material: Polypropylene
Magnet Size: 140 oz
Sensitivity (1W / 1M): 91 dB
Motor Structure: 39 oz
Cutout Diameter: 11 in
Mounting Depth: 5.59 in
Xmax: 9.5 mm
Spl: 91 dB
No: 0.32
Qts: 0.71
Qes: 0.75
Qms: 4.5
Mms: 117 g
Cms: 160 uM/N
Vas: 59 Ltr
SD: 490.9 sqCM
Fs: 35.0 Hz
Test Impedance: 3.4 ohm
VC Impedance: 4-ohms
Size: 12"
Sensitivity: 91 dB
Frequency Response: 32 Hz - 500 Hz
Voice Coil Size: 2"
Power Handling (RMS/Peak): 250 / 500 watts
